150% Overload Capacity VFD Variable Frequency Drive for Single Phase and Three Phase Input 0.00-600.00Hz Output Frequency

Product Description:

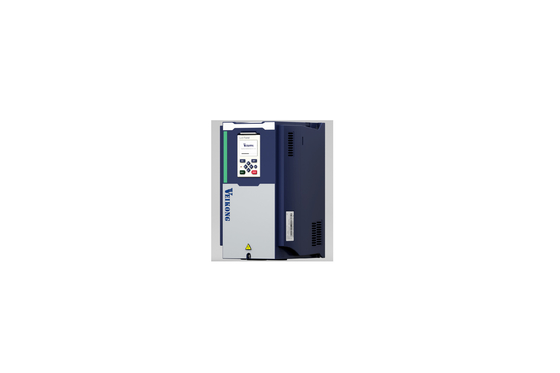

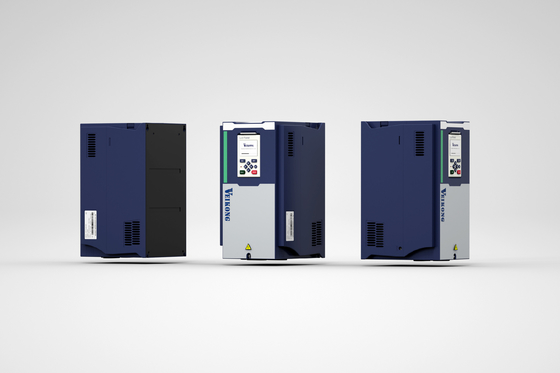

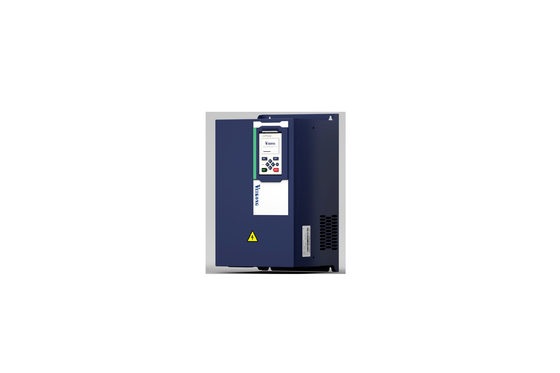

VEIKONG VFD500 is a high-performance variable frequency drive designed to optimize motor control across diverse industrial applications. Engineered with advanced vector control technology, it ensures precise speed regulation and torque output, enabling seamless operation even under fluctuating loads. Its intelligent control system reduces energy consumption by up to 40%, translating into significant cost savings for long-term operation.

Built with a ruggedized housing and high-grade components, VFD500 offers exceptional durability, capable of withstanding harsh environmental conditions like high humidity, dust, and vibrations. It features multiple protection mechanisms, including overvoltage, overcurrent, and overheating safeguards, ensuring stable performance and extended equipment lifespan. The intuitive interface allows for easy parameter adjustment and real-time monitoring, while communication ports such as Modbus RTU and CAN bus support seamless integration with PLCs and other automation systems.

Ideal for applications in manufacturing, water treatment, HVAC, and conveyor systems, VEI KONG VFD500 enhances system efficiency, minimizes maintenance requirements, and boosts overall productivity. Whether it’s driving pumps, fans, or industrial motors, this variable frequency drive delivers reliable performance and adaptability, making it a trusted choice for modern industrial automation.

Features:

High-performance Vector Control : Supports open-loop and closed-loop vector control for induction motors, enabling precise speed and torque regulation, ideal for high-precision applications.

Rich Functionality

• Speed Tracking : Responds quickly to motor status changes, ensuring stable operation during load fluctuations.
• Remote & PC Control : GPRS enables remote parameter adjustment via APP, while PC tools allow comprehensive on-site monitoring and setup.
• PID Control : Optimizes pressure and flow control in fan and pump systems for energy savings.
• Multi-speed & Jog : Offers 16-speed settings and jog function for diverse operation and easy debugging.

Robust & Reliable

• Durable Build : Withstands harsh environments; high-quality components aim for long lifespan.
• Full Protection : Overvoltage, overcurrent, and overheating safeguards ensure equipment safety.

Flexible I/O : Standard and optional I/O boards provide various digital and analog terminals for seamless integration with industrial devices.

Efficient Communication : Standard Modbus support enables easy connection with other automation equipment for centralized control.

Technical Parameters:

P00.00 User password
P00.03 reset
P00.04 motor control mode
P00.05 Running mode
P00.06 Source of operation command
P00.07 Numeric frequency setting
P00.08 Rotation direction

P01.00 Main frequencysource selection (A)
P01.06 Maximum frequency
P01.08 Upper limit frequency

P02.00 Starting mode
P02.04 Pre-excitation current
P02.05 Pre-excitation time
P02.08 Stop method

P03.01 Acceleration time 1
P03.02 Deceleration time 1

Applications:

The VEIKONG VFD500, a high-performance general-purpose AC drive, has a wide range of applications across multiple industries:

Textile Industry : It is used to control the speed of spinning machines, looms, and other textile equipment. Precise speed regulation ensures uniform yarn production and high-quality fabric weaving. For example, in spinning processes, the VFD500 can adjust the motor speed to control the twist and tension of the yarn, preventing breakages and improving product quality.

Papermaking Industry : Applies to the control of paper machine drives, such as the main drive, wire section drive, and press section drive. The VFD500 helps in maintaining a consistent paper-making speed, which is crucial for producing paper with uniform thickness and quality. It can also adjust the speed according to different paper grades and production requirements, optimizing energy consumption.

Tension Control Systems : In industries like wire and cable manufacturing, and packaging, the VFD500 is used for tension control. It can precisely control the motor speed to maintain a stable tension on the material being processed. For instance, in wire drawing, it ensures that the wire is drawn at a consistent tension, preventing wire breakage and ensuring the dimensional accuracy of the final product.

Fans and Pumps : Widely used in HVAC (Heating, Ventilation, and Air-Conditioning) systems, water treatment plants, and industrial processes. In HVAC systems, it adjusts the speed of fans and pumps based on the load requirements. For example, in a large office building, the VFD500 can control the fan speed in the air-handling units according to the temperature and humidity demands, reducing energy consumption. In water treatment plants, it can regulate the pump speed to control the water flow rate and pressure, optimizing the treatment process.

Machine Tools : Enables accurate speed control of spindle motors and feed motors in machine tools. This is essential for achieving high-precision machining operations. For example, in a CNC (Computer Numerical Control) lathe, the VFD500 can precisely control the spindle speed for different cutting operations, ensuring smooth cutting and high-quality surface finishes.

Packaging and Food Industry : Used to control conveyor belts, filling machines, and other equipment. In packaging, it can adjust the speed of conveyor belts to match the packaging process speed, ensuring efficient packaging. In the food industry, it controls the motors of mixers, grinders, and other processing equipment, meeting the requirements of different food production processes.

Automated Production Lines : Serves as a key component in various automated production equipment, coordinating the operation of different motors to ensure the smooth running of the entire production line. It can communicate with other control systems, such as PLCs (Programmable Logic Controllers), to achieve complex automation functions, improving production efficiency and product quality.

Customization:

Product Customization Services for VEIKONG Variable Frequency Drive (VFD500):

Brand Name: VEIKONG

Model Number: VFD500

Place of Origin: China

Certification: CE IEC

Minimum Order Quantity: 20

Price: Negotiable

Packaging Details: Paper carton or wooden case based on different power range

Delivery Time: 7 working days in general, depend on quantity

Payment Terms: T/T or other payment term based on different request and situation

Supply Ability: 10000/ month

Overload Capacity: 150% For 60s, 200% For 3s

Protection Level: IP20

Relay: 2 Relays

Temperature sensor port: PT100/PT1000

DI terminal: 7 DI Terminals

Support and Services:

The Product Technical Support and Services for the VFD Variable Frequency Drive product include:

- Troubleshooting assistance for installation and operation issues.

- Guidance on programming and configuring the VFD for specific applications.

- Warranty support and information on maintenance schedules.

- Remote diagnostics and software updates for optimal performance.

Packing and Shipping:

Product Packaging for VFD Variable Frequency Drive:

The VFD Variable Frequency Drive will be carefully packaged in a sturdy cardboard box to ensure safe transportation.

Shipping Information:

We offer worldwide shipping for the VFD Variable Frequency Drive product. Shipping times and costs may vary depending on the destination. Please refer to our shipping policy for more details.

FAQ:

Q: What is the brand name of this VFD product?

A: The brand name is VEIKONG.

Q: What is the model number of this VFD product?

A: The model number is VFD500.

Q: Where is this VFD product manufactured?

A: This VFD product is manufactured in China.

Q: What certifications does this VFD product have?

A: This VFD product is certified with CE and IEC.

Q: What is the minimum order quantity for this VFD product?

A: The minimum order quantity is 20 units.
